Location:Home / Product / Stop valve / Oxygen globe valve JY41W-16P

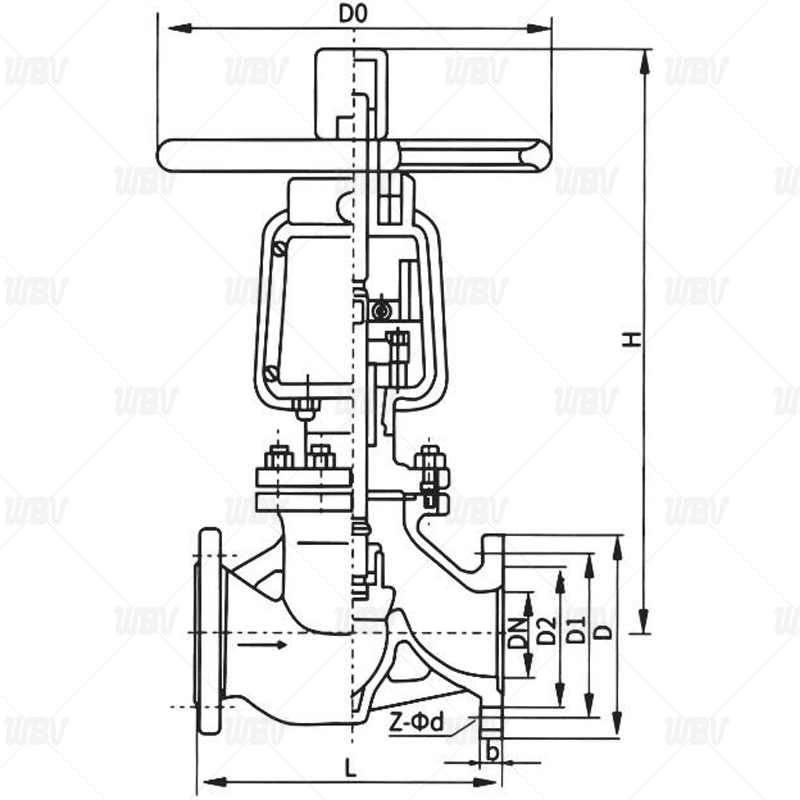

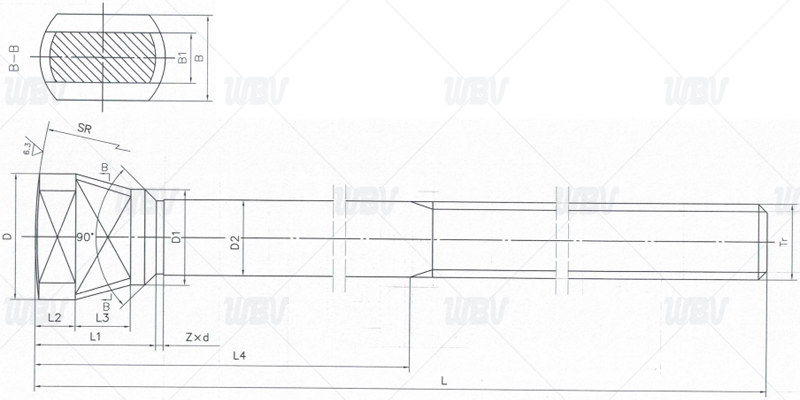

Product drawings
Product size
| Nominal DiameterDN | L | D | D1 | D2 | b | f | z-Фd | H | D0 |
| PN16 | |||||||||
| 15 | 130 | 95 | 65 | 45 | 14 | 2 | 4-Ф14 | 270 | 120 |
| 20 | 150 | 105 | 75 | 55 | 14 | 2 | 4-Ф14 | 280 | 120 |
| 25 | 160 | 115 | 85 | 65 | 14 | 2 | 4-Ф14 | 290 | 140 |
| 32 | 180 | 135 | 100 | 78 | 16 | 2 | 4-Ф18 | 320 | 160 |
| 40 | 200 | 145 | 110 | 85 | 16 | 3 | 4-Ф18 | 360 | 180 |
| 50 | 230 | 160 | 125 | 100 | 16 | 3 | 4-Ф18 | 400 | 220 |
| 65 | 290 | 180 | 145 | 120 | 18 | 3 | 4-Ф18 | 470 | 240 |
| 80 | 310 | 195 | 160 | 135 | 20 | 3 | 8-Ф18 | 520 | 280 |
| 100 | 350 | 215 | 180 | 155 | 20 | 3 | 8-Ф18 | 570 | 280 |
| 125 | 400 | 245 | 210 | 185 | 22 | 3 | 8-Ф18 | 620 | 350 |
| 150 | 480 | 280 | 240 | 210 | 24 | 3 | 8-Ф23 | 670 | 350 |
| 200 | 600 | 335 | 295 | 265 | 26 | 3 | 12-Ф23 | 750 | 450 |
| 250 | 650 | 405 | 355 | 320 | 30 | 3 | 12-Ф26 | 810 | 500 |
| 300 | 750 | 460 | 410 | 375 | 30 | 4 | 12-Ф26 | 930 | 550 |
| 350 | 850 | 520 | 470 | 435 | 34 | 4 | 16-Ф26 | 1020 | 600 |
| 400 | 950 | 580 | 525 | 485 | 36 | 4 | 16-Ф30 | 1100 | 600 |
| 450 | 1050 | 640 | 585 | 545 | 40 | 4 | 20-Ф30 | 1190 | 700 |
| 500 | 1150 | 705 | 650 | 608 | 44 | 4 | 20-Ф34 | 1240 | 700 |
| 600 | 1350 | 840 | 770 | 718 | 48 | 5 | 20-Ф41 | 1340 | 800 |
| 700 | 1450 | 910 | 840 | 788 | 50 | 5 | 24-Ф41 | 1420 | 900 |
| 800 | 1650 | 1020 | 950 | 898 | 52 | 5 | 24-Ф41 | 1720 | 1000 |
Technical Data
1. Implement the standard GB/T10530-2018
2. Structural length standard GB/T12221-2005
3. Flange size standard JB/T79-1994
4. Pressure and Temperature Standards GB/T12224-2015
5. Test standard GB/T10530-2018
Product Parts List
| No. | name | Materials | No. | name | Materials |
| 1 | Body | CF8 | 8 | handwheel nut | QAL9-4 |
| 2 | Bonne | F304 | 9 | Middle flange nut | A194-8 |
| 3 | Packing | PTFE/Flexible graphite | 10 | Mid flange Bolt | A193-B8 |
| 4 | plate | JIS-SCS13 | 11 | pin shaft | QAL9-4 |
| 5 | Stem nut | 青銅 | 12 | Living bolt | A193-B8 |
| 6 | Hand wheel | QT400-15 | 13 | Union nut | A194-8 |
| 7 | nameplate | JIS-SUS304 |
