Location:Home / Product / Gate valve / GB RS Wedge Soft Sealed Gate Valve Z40X-16

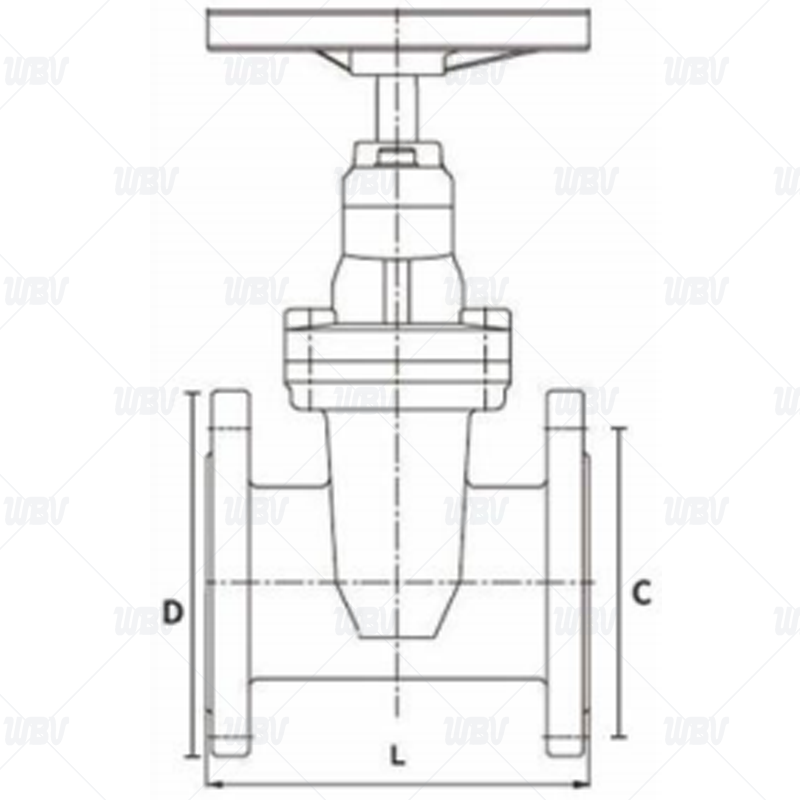

Product drawings
Product size
| DN | L | C | D |
| 50 | 178 | 313 | 335 |
| 65 | 190 | 332 | 375 |
| 80 | 203 | 372 | 415 |
| 100 | 229 | 424 | 476 |
| 125 | 254 | 497 | 540 |
| 150 | 267 | 562 | 600 |
| 200 | 292 | 680 | 720 |
| 250 | 330 | 837 | 875 |
| 300 | 356 | 948 | 990 |
| 350 | 381 | 1010 | 1050 |
| 400 | 406 | 1220 | 1245 |
| 450 | 432 | 1280 | 1310 |
| 500 | 457 | 1480 | 1560 |
| 600 | 508 | 1665 | 1750 |
Technical Data
1. Implement the standard GB/T12234-2019
2. Structural length standard GB/T12221-2005
3. Flange size standard HG/T9113.1-2000
4. Testing standard JB/T9092-1999
Product Parts List
| No. | name | Materials | No. | name | Materials |
| 1 | Body | CF8 | 8 | Thrust washer | Bronze |
| 2 | Valve plate | 304 covered with EPDM | 9 | shaft sleeve | Bronze |
| 3 | Bolt | galvanizing2Cr13 | 10 | Bolt | galvanizing2Cr13 |
| 4 | sealing ring | NBR | 11 | Shaft cover | CF8 |
| 5 | Bonne | CF8 | 12 | dust cover | NBR |
| 6 | Stem | 2Cr13 | 13 | Hand wheel | CF8 |
| 7 | o-ring | NBR | 14 | 緊固Nut | galvanizing2Cr13 |
